These drawings apply to Cherry Shaker (CS), Navy Blue (NB), Timber Shaker (TS), Sand Pebble (SP), Weathered Grey (WG), and Unfinished (UF). Confirm the exact item and finish before ordering. The drawings do not specify all installation clearances or internal hardware.
Find your cabinet drawing
Search an item number or choose a cabinet type. Open the drawing to inspect it at full size.
8 matching drawing sheets

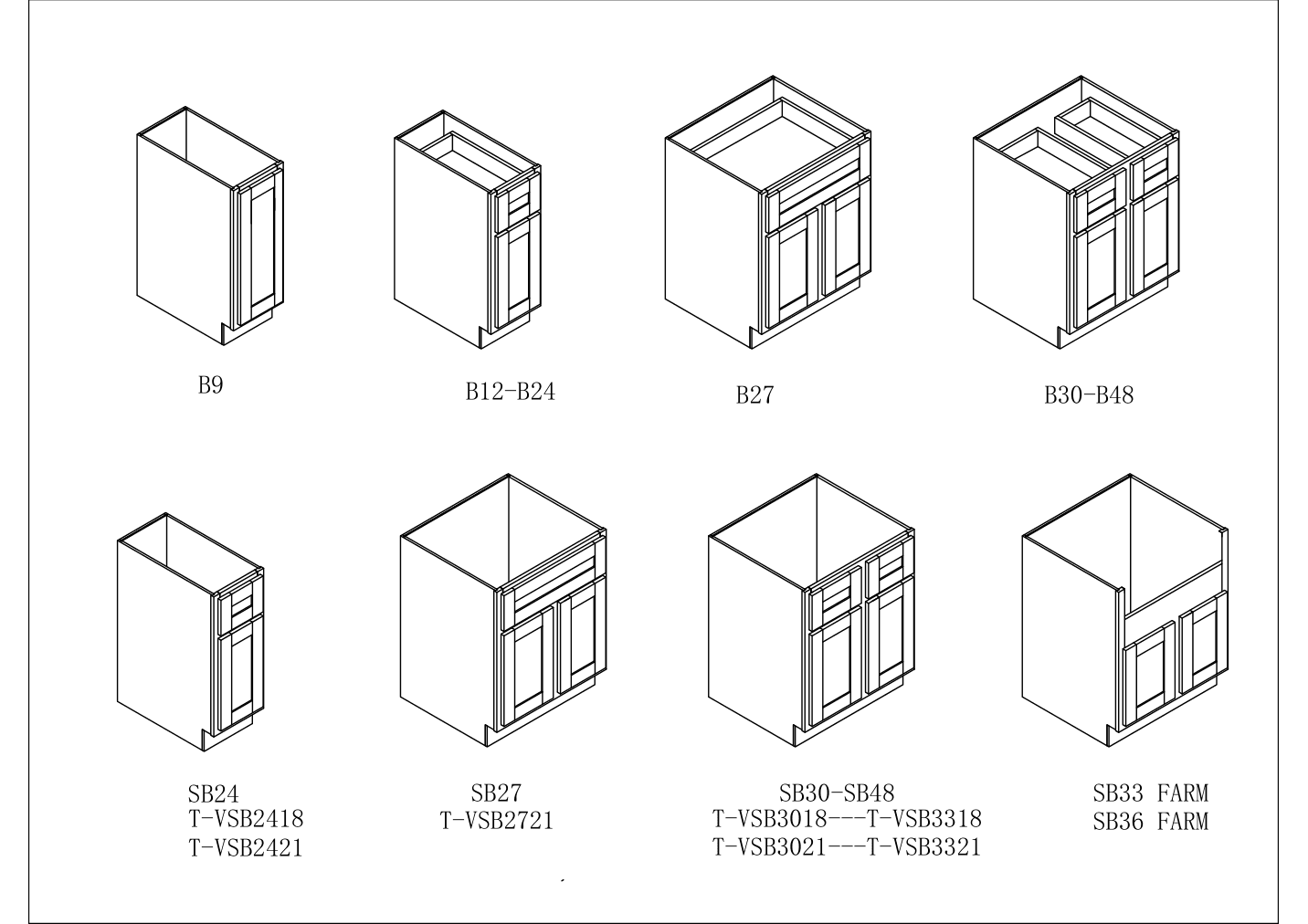

Base and sink cabinets
Open full-size drawing →
Item numbers on this drawing
B9 · B12 · B15 · B18 · B21 · B24 · B27 · B30 · B33 · B36 · B39 · B42 · B45 · B48 · SB24 · SB27 · SB30 · SB33 · SB36 · SB39 · SB42 · SB45 · SB48 · SB33 FARM · SB36 FARM · T-VSB2418 · T-VSB2421 · T-VSB2721 · T-VSB3018 · T-VSB3318 · T-VSB3021 · T-VSB3321
Supplier reference received September 7, 2026. SKU ranges describe the drawing sheet; they do not confirm current stock.
